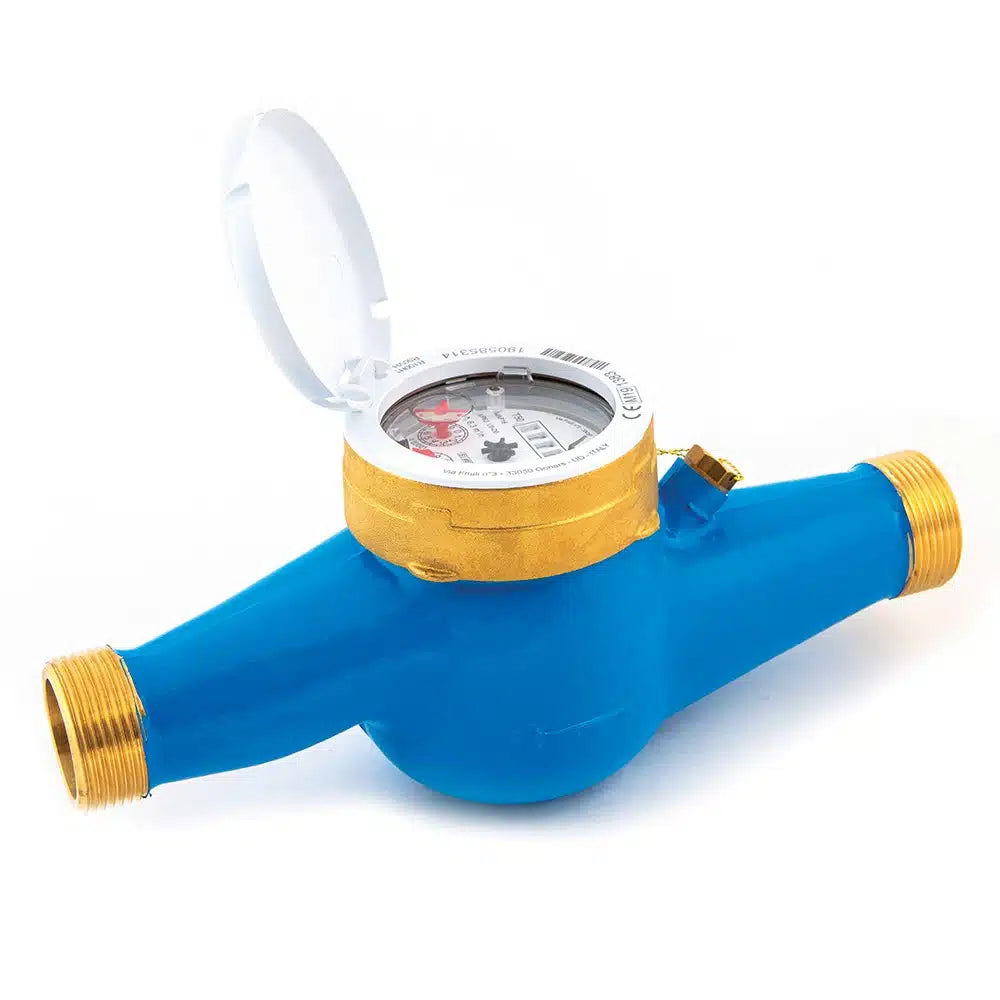

BMAG Plastic R160 Volumetric Cold Water Meter
The BMAG Plastic R160 Volumetric Water Meter provides reliable and accurate water measurement for residential and commercial potable water systems. Manufactured from high-quality technical plastics and corrosion-resistant materials, it offers durability, precise readings, and long service life.
The dry dial mechanism prevents water contact with the register, eliminating fogging and ensuring clear readings. A 360° rotating dial allows easy installation and convenient reading from any angle.
Key Features
R160 accuracy class for dependable water consumption measurement
Dry dial design for longer service life and fog-free readings
IP68 waterproof copper-sealed mechanism for superior dust and water protection
High-strength glass dial lens that is UV-resistant and easy to read
Anti-magnetic protection to prevent interference and tampering
High-sensitivity low-flow indicator for leak detection
Optimised internal structure to minimise pressure loss
360° rotating dial for flexible installation and reading
Materials & Compliance
Manufactured from GV-5H, PA66+GF30, and ABS plastics, compliant with ISO 4064, NSF/ANSI 61, and AWWA 701 standards for potable water meters.
Optional Features
Sizes: DN15 to DN50 (1/2″ to 2″)
Communication options: LoRa, LoRaWAN, NB-IoT, GPRS, M-Bus, electromagnetic pulse
Optional non-return valve to prevent backflow
Multiple thread standards: BSP, NPT, ISO 228
Flow units: m³, ft³, gallons, or litres
Additional material options: brass, bronze, cast iron, stainless steel
Operating Conditions
Cold Water: up to 50°C (122°F)
Hot Water: up to 90°C (194°F)
Maximum Pressure: 16 bar (1.6 MPa)
Installation: Horizontal installation recommended for optimal accuracy
-
SKU:
R160/15SJC
-
Type:
Water
-
Features
Single Jet R160,
