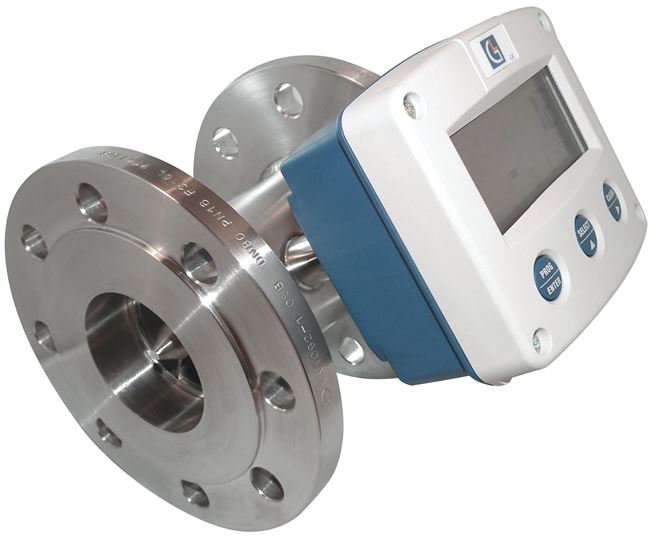

LX Stainless Steel Turbine Flow Meter
£465.00 (ex-VAT)
£465.00 (ex-VAT) Regular price (inc-VAT)
Lx Turbine Meters are built for specialist applications where durability matters. Their stainless-steel construction resists corrosion from a wide range of chemical solutions and is also suitable for food-grade use.
Each meter is supplied with a 101a totaliser as standard, showing total volume and live flow rate on a digital display. The display is powered by an internal battery, with an option for 24VDC supply. Alternative display options are available on request.
Connections
Threaded: 15–50mm BSP male
Flanged: 20–100mm PN16
(Connection type does not affect flow range.)
Flow Ranges
Lx13: 2–20 L/min
Lx16: 5–50 L/min
Lx19: 14–140 L/min
Lx25: 27–270 L/min
Lx40: 55–550 L/min
Lx50: 114–1140 L/min
Lx80: 227–2270 L/min
Lx100: 454–4540 L/min
Installation
Suitable for horizontal or vertical pipe runs. For vertical installations, upward flow is recommended for best accuracy.
-
SKU:
Lx13-T1-S
-
Type:
Specialist
-
Features
Communication Outputs - 4-20ma Analogue Output, Pulsed; Connection Type - Flanged Connection, Screwed Connection; Power Supply - 24Vdc Mains Powered, Battery Powered; Connection Size - 15-100mm,
