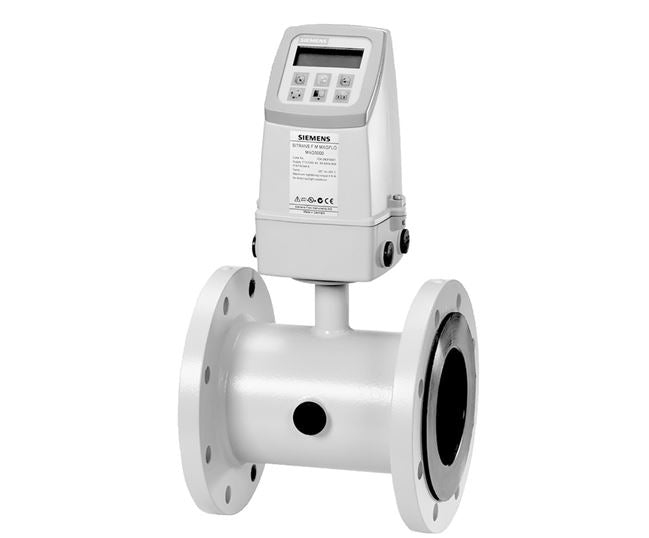

MAG 5100W Flow Meter

The Siemens MAG5100W is a high-grade electromagnetic flow meter built for accurate, reliable measurement across a wide range of applications. Using an electromagnetic sensor, it converts flow into an electrical signal proportional to velocity, delivering stable performance even at higher flow rates.

With no moving parts, the MAG5100W is well suited to challenging media, including liquids containing particles, with liner and electrode options available to suit the application.

Sizes & Ratings

Size range: 25mm to 1200mm

Operating temperature: up to 70°C

Flanged connections: PN10 to PN40 (specified per installation)

Chemical-resistant construction for wider application use

Transmitters & Outputs
Compatible with Siemens MAG5000 and MAG6000 transmitters:

Power supply: 230VAC or 24VDC

MAG5000: analogue + pulse outputs as standard

MAG6000: same outputs plus optional bus modules (e.g. Modbus, Profibus)
All outputs are configurable via the transmitter display.

Installation
The transmitter can be mounted compact (on the meter) or remotely using screened cables and a wall-mount kit. Suitable for horizontal or vertical pipe runs.
