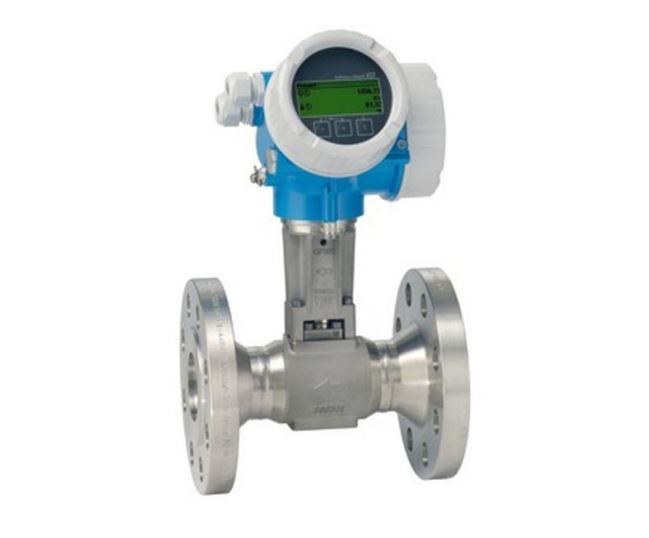

Prowirl F 200 Steam Meter

The Endress+Hauser Prowirl F 200 is a vortex flow meter designed primarily for steam consumption monitoring, with the flexibility to measure other gases and liquids. It is available in 15–300mm sizes and supplied with flanged connections as standard.

Flow is measured using the vortex shedding principle, where vortices create a differential pressure signal that is converted into electrical data and displayed on the meter’s LCD. The display can be mounted directly on the meter for a compact setup or installed remotely.

Outputs & Communications

4–20mA analogue output

Pulse output

Optional Profibus (on request)
All outputs are configurable via the display using push-button navigation.

Power

Requires a 24VDC supply

Note
The meter body is aluminium-coated, so material compatibility should be checked when used with media other than steam.
