R200 Multi-Jet Hot Water Meter
R200 Multi-Jet Water Meter

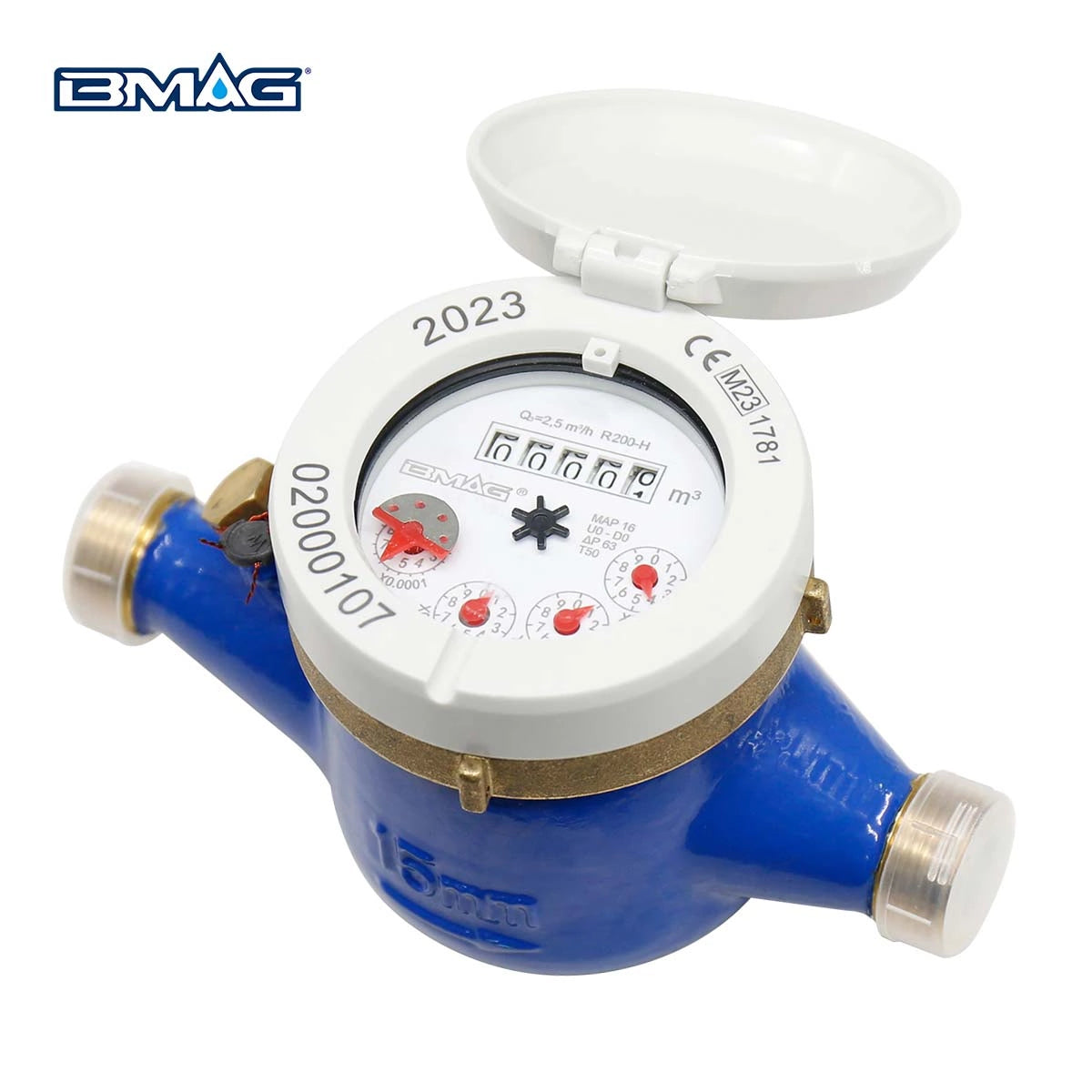

The R200 Multi-Jet Water Meter is a high-precision mechanical meter designed for reliable water measurement in residential and commercial systems. With a Q3/Q1 ratio of R200, it delivers excellent accuracy and sensitivity, making it ideal for applications requiring dependable performance and long service life.
Key Features
Multi-jet measuring principle for stable accuracy and extended durability
High sensitivity at low flow rates with minimal pressure loss
Vacuum-sealed mechanism to protect internal components and ensure long-term reliability
Corrosion-resistant brass body with electrostatic coating
High-strength glass dial lens resistant to pressure and impact
Anti-magnetic protection to prevent external interference
Optional pulse output and AMR compatibility for remote reading systems
Optional non-return valve and inlet filter for added system protection
Low maintenance design
Applications
Suitable for potable water and hot water systems up to 50°C (122°F).
Operating Conditions
Temperature: 0°C to 50°C
Maximum Pressure: 16 bar (1.6 MPa)
Standards & Compliance
ISO 4064:2014 / OIML R49
Directive 2014/32/EU (MID)
European Standard EN 14154
-
SKU:
R200/15SJH
-
Type:
Water
-
Features
Single Jet R200,
